ATORN test pin RSB TC1 12.98 mm x 70 mm

ATORN test pin RSB TC1 12.98 mm x 70 mm

ATORN test pin RSB TC1 12.98 mm x 70 mm
Item no: 1003321 268

Online price:

Available in 4-6 working days.

Application
For measuring bore spacings, bore diameters, angularity of bores etc.

Execution
  • ground and lapped
  • hardened 58-62 HRC
  • Rust- and acid-resistant steel
  • Diameter from 0.300 to 0.999 mm with a length of 40 mm; diameter from 1.000 mm with a length of 70 mm
  • diameter from 3.00 mm: One end with 30-45° chamfer; other end deburred with diameter marking on end face
  • diameter from 1.5 to 2.999 mm: One end with 30-45° chamfer; other end deburred with diameter marking on outer surface
  • diameter from 1.00 to 1.499 mm: One end with 30-45° chamfer; other end deburred without diameter marking
  • up to 0.999 mm: Both ends deburred, without diameter marking


Brand: ATORN
Diameter: 12,98 mm
Tolerance class: 1
Material: Stainless and acid proof steel
Length: 70 mm
DIN: 2269
Calibration Group: AE

ATORN-No.: 33061180

EAN no.: 4066107101930

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN test pin RSB TC1 12.89 mm x 70 mm
  •
    ATORN test pin RSB TC1 12.94 mm x 70 mm
  •
    ATORN test pin RSB TC1 12.95 mm x 70 mm
  •
    ATORN test pin RSB TC1 13.84 mm x 70 mm
  •
    ATORN test pin RSB TC1 13.94 mm x 70 mm
  •

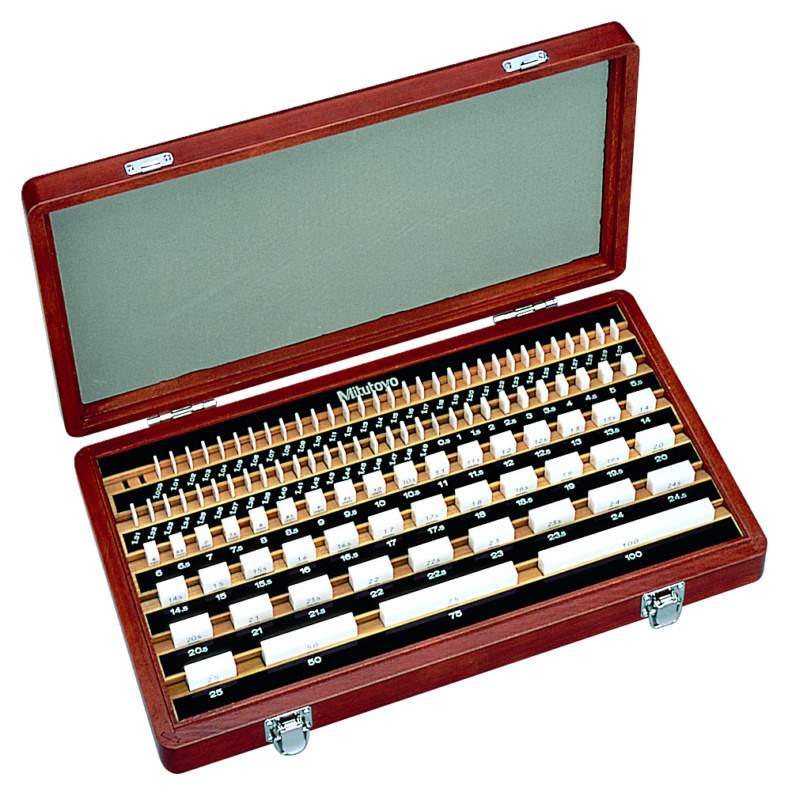

    Parallel-Endmaß-Satz aus Keramik 103-teilig Toleranzklasse 0
  •
