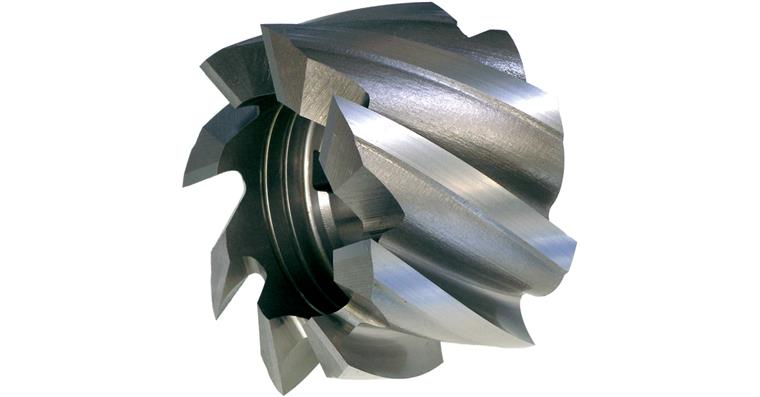

ATORN shell end mill, PM, type N, uncoated, Ø 40.0 x 32 x 16

ATORN shell end mill, PM, type N, uncoated, Ø 40.0 x 32 x 16

ATORN shell end mill, PM, type N, uncoated, Ø 40.0 x 32 x 16
Item no: 1003170 012

Online price:

Available in 5-7 working days.

Execution
  • Bore hole with longitudinal and lateral slot in conformity with DIN 138
  • Cutting around the circumference and on the end face


Brand: ATORN
Cutting material: HSSE-PM
Surface: Uncoated
Type: N
Number of cutting edges (Z): 6 PCS
Twist angle: 40°
Tool holding device: With crosswise and longitudinal slot DIN 138
Cutting edge diameter: 40 mm
Height: 32 mm
Bore diameter: 16 mm
Design of cutting edges: Smoothing
fz steel 700: 0,08 mm

ATORN-No.: 11230179

EAN no.: 4050293319958

Product Datasheet Datasheet cutting values
