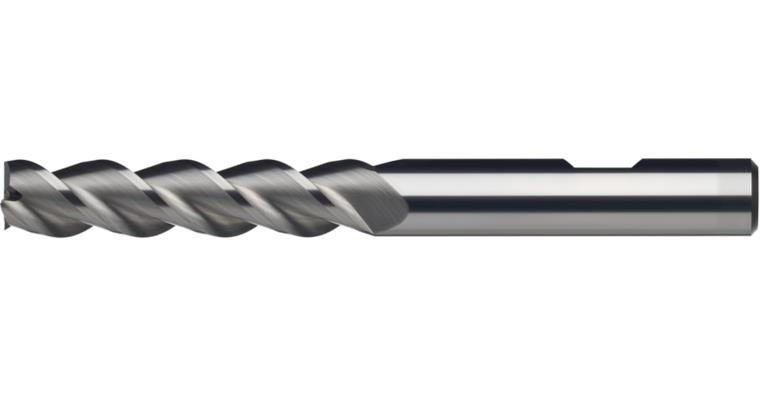

ATORN solid carbide square end mill T=3 long 3.50 mm shank DIN 6535 HB

ATORN solid carbide square end mill T=3 long 3.50 mm shank DIN 6535 HB

ATORN solid carbide square end mill T=3 long 3.50 mm shank DIN 6535 HB
Item no: 1003160 249

Online price:

Available in 5-7 working days.

Application
End mill for universal use when plunge milling, groove milling and keyway cutting as well as face milling and peripheral milling.

Execution
  • solid carbide ultra-fine grain
  • straight shank in accordance with DIN 6535 HB
  • centre cutting
  • without edge protection chamfer
  • uncoated


Brand: ATORN
Cutting material: SC
Surface: Uncoated
Type: N
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Long
Cutting edge diameter: 3,5 mm
Cutting edge length: 15 mm
Length: 59 mm
Edge protection chamfer length: 0,05 mm
Shank diameter: 6 mm
fz steel 1000: 0,036 mm
Overall stainless steel suitability: 1
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10910797

EAN no.: 4050293091786

Product Datasheet Datasheet cutting values
