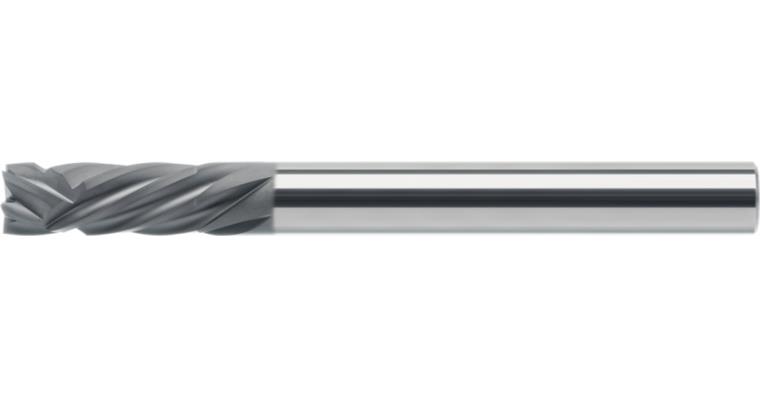

ORION SC compression milling cutter diameter 12.0 x 12 x 25 x 100 mm

ORION SC compression milling cutter diameter 12.0 x 12 x 25 x 100 mm

ORION SC compression milling cutter diameter 12.0 x 12 x 25 x 100 mm
Item no: 1003160 068

Online price:

Available in 5-7 working days.

Application
To prevent delamination when machining fibre composites and to achieve an optimal edge finish, the left-hand spiral generates pressure on the bottom edge of the workpiece at the bottom of the tool, while the right-hand spiral generates counter pressure on the top of the workpiece at the top of the tool. To prevent melting, a greatly positive cutting angle and deep chipping spaces work against over-heating.

Execution
  • Solid carbide ultra-fine grain
  • Diamond coating
  • Straight shank in accordance with DIN 6535 HA
  • Spiral change as compression zone

Notes
You can find detailed information on the usage value of this tool on our online shop.

Brand: ATORN
Cutting material: SC
Surface: Diamond coating
Number of cutting edges (Z): 6 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 12 mm
Cutting edge length: 25 mm
Clearance length: 9 mm
Length: 100 mm
Shank diameter: 12 mm
fz aluminium: 0,08 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 10617585

EAN no.: 4050293435474

Product Datasheet
