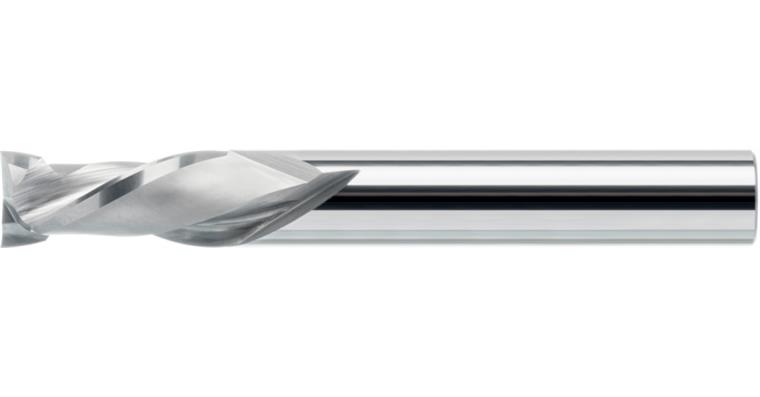

ORION SC compression milling cutter diameter 8.0 x 8 x 22 x 64 mm

ORION SC compression milling cutter diameter 8.0 x 8 x 22 x 64 mm

ORION SC compression milling cutter diameter 8.0 x 8 x 22 x 64 mm
Item no: 1003160 054

Online price:

Available in 5-7 working days.

Application
With this tool, the spiral changes from left to right, which leads to the axial cutting forces being compressed at a centred point. This allows delamination issues to be more effectively dealt with. HSC compression milling cutters are especially suitable for machining epoxy resin or polyester-based plastics with carbon or glass fibres.

Execution
  • Solid carbide ultra-fine grain
  • Uncoated
  • Straight shank in line with DIN 6535 HA

Notes
You can find detailed information on the usage value of this tool on our online shop.

Brand: ATORN
Cutting material: SC
Surface: Uncoated
Number of cutting edges (Z): 2 PCS
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 8 mm
Cutting edge length: 22 mm
Clearance length: 4 mm
Length: 64 mm
Shank diameter: 8 mm
fz aluminium: 0,15 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 10617509

EAN no.: 4050293434712

Product Datasheet
