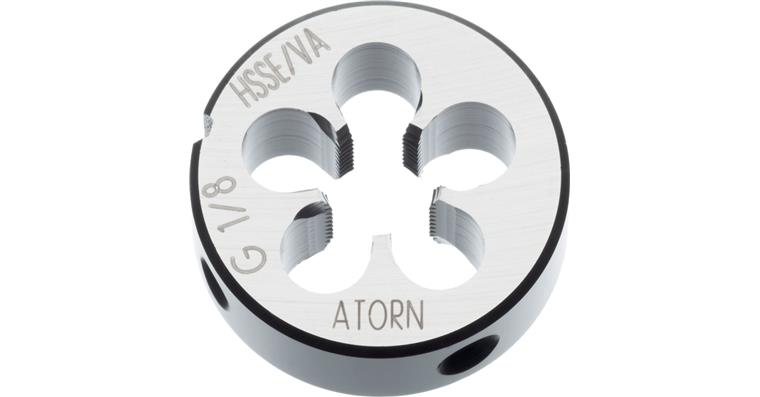

ATORN die HSSE EN 24231 G 1/8 in tolerance A outer diameter 30 mm

ATORN die HSSE EN 24231 G 1/8 in tolerance A outer diameter 30 mm

ATORN die HSSE EN 24231 G 1/8 in tolerance A outer diameter 30 mm
Item no: 1003150 047

Online price:

Available in 8-10 working days.

Application
For cutting G (pipe) threads externally in the material groups of steel, stainless steel, non-ferrous metals and special alloys up to a strength of 1300 N/mm².

Execution
right die. tol. A with spiral point, nitrided, pre-slotted and 2.0 pitch

Advantage
  • specialised application with optimised cutting geometry for use in difficult-to-machine materials
  • micro cut edge treatment and special lapping method for excellent process reliability and long service life


Brand: ATORN
Material to be processed: Universal use
Thread type: Pipe thread
Cutting material: HSSE
Tolerance of dies: A
Thread type x nominal diameter in inches: G 1/8 in
Number of thread starts per inch: 28
Outer diameter: 30 mm
Height: 11 mm
Cutting direction: Right-hand cutting

ATORN-No.: 11190205

EAN no.: 4050293116175

Product Datasheet
