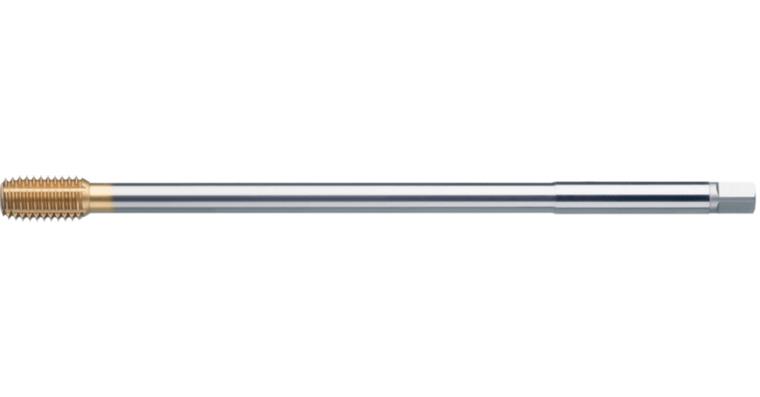

ATORN machine thread former long HSSE-PM TiN DIN 371 M5 x 0.8 mm ISO 2 3xD

ATORN machine thread former long HSSE-PM TiN DIN 371 M5 x 0.8 mm ISO 2 3xD

ATORN machine thread former long HSSE-PM TiN DIN 371 M5 x 0.8 mm ISO 2 3xD
Item no: 1003141 615

Online price:

Available in 4-6 working days.

Application
For producing fine, deep-set metric threads in through holes and blind holes on CNC or conventional machines in steel, stainless steel, non-ferrous metals up to a strength of 1300 N/mm².

Execution
  • Extra-long machine thread former with lubrication grooves
  • Internal cooling from M6

Advantage
  • Innovative mould geometry ensures very high dimensional accuracy and process reliability.
  • Very easy access to deeply recessed threads.


Brand: ATORN
Material to be processed: Universal use
Surface: TiN
Lead angle shape: C
Thread type: Metric thread
Thread type x nominal diameter: M5
Pitch: 0,8 mm
Cutting material: HSSE-PM
Core hole diameter: 4,65 mm
Length: 125 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank diameter: 3,5 mm
Shank square: 2,7 mm
Coolant supply: Internal axial
Tolerance of screw taps: ISO 2X (6HX)
Application type/machine type: CNC | Conventional
Cutting speed (steel 1000) suitability (P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (P 1300 N/mm²): 1
Overall stainless steel suitability (M): 1
fitness not iron total (N): 2
Cutting speed (cast) suitability (K): 3
fitness Titan/Nickel/Super total (S): 3
Cutting speed (hard 65) suitability (H 65HRC): 3
DIN: 371 similar | 2174

ATORN-No.: 10482510

EAN no.: 4050293579482

Product Datasheet Datasheet cutting values
