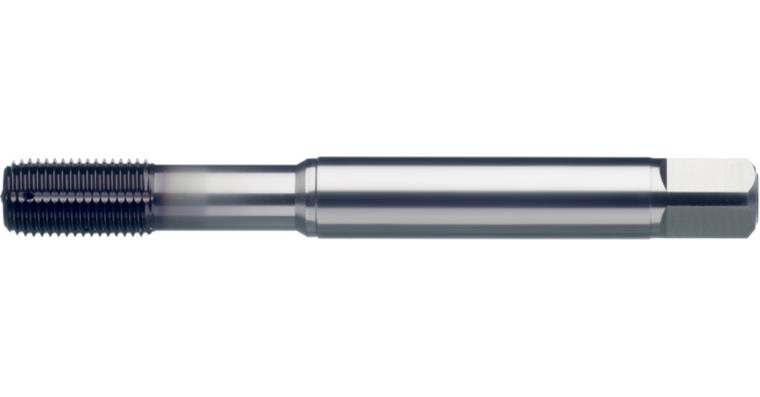

ATORN machine thread former IC HSSE-PM TiAlN DIN 374 MF24 x 1.5 mm ISO 2 3xD

ATORN machine thread former IC HSSE-PM TiAlN DIN 374 MF24 x 1.5 mm ISO 2 3xD

ATORN machine thread former IC HSSE-PM TiAlN DIN 374 MF24 x 1.5 mm ISO 2 3xD
Item no: 1003141 598

Online price:

Available in 4-6 working days.

Application
For producing fine, deep-set metric threads in through holes and blind holes on CNC or conventional machines in steel, stainless steel and non-ferrous metals up to a strength of 1300 N/mm².

Advantage
  • Innovative mould geometry ensures very high dimensional accuracy and process reliability.
  • High-quality, torsion-resistant HSSE PM cutting material and surface finish for very high service life requirements.
  • Cutting edge finish for very high service life requirements.


Brand: ATORN
Material to be processed: Universal use
Surface: TiCN
Lead angle shape: C
Thread type: Metric fine thread
Thread type x nominal diameter: MF24
Pitch: 1,5 mm
Cutting material: HSSE-PM
Core hole diameter: 23,3 mm
Length: 140 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank diameter: 18 mm
Shank square: 14,5 mm
Coolant supply: Internal radial
Tolerance of screw taps: ISO 2X (6HX)
Application type/machine type: CNC | Conventional
Cutting speed (steel 1000) suitability (P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (P 1300 N/mm²): 1
Overall stainless steel suitability (M): 1
fitness not iron total (N): 2
Cutting speed (cast) suitability (K): 3
fitness Titan/Nickel/Super total (S): 3
Cutting speed (hard 65) suitability (H 65HRC): 3
DIN: 374 similar

ATORN-No.: 10482555

EAN no.: 4050293579932

Product Datasheet Datasheet cutting values
