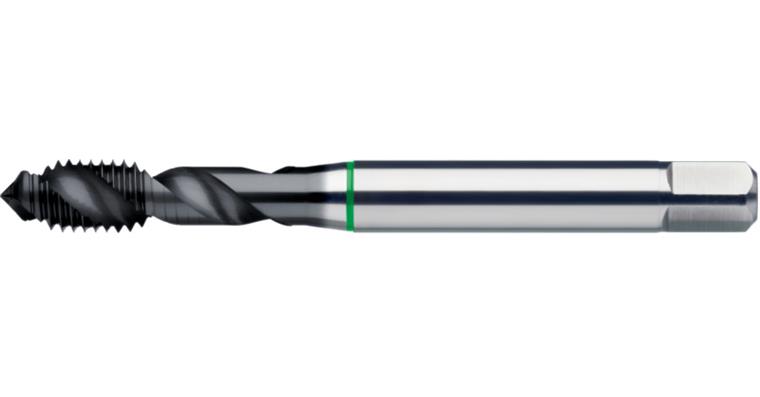

ATORN screw tap HSSE-PM Carbo C 376 40° M20x2.5 ISO2 S 2.5xD CNC N

ATORN screw tap HSSE-PM Carbo C 376 40° M20x2.5 ISO2 S 2.5xD CNC N

ATORN screw tap HSSE-PM Carbo C 376 40° M20x2.5 ISO2 S 2.5xD CNC N
Item no: 1003141 397

Online price:

Available in 4-6 working days.

Application
For producing metric threads on CNC or conventional machines in blind holes in the non-ferrous metals material group.

Execution
Dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = transition-fit shank (from M12)

Advantage
  • Specialised use with optimised chip geometry for use in NF metals.
  • Innovative carbo coating for very good sliding properties and emergency operating function if coolant supply is interrupted.


Brand: ATORN
Material to be processed: Aluminium
Thread type: Metric thread
Thread type x nominal diameter: M20
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 140 mm
Cutting material: HSSE-PM
Surface: Carbo coating
Pitch: 2,5 mm
Twist angle: 40° (right)
DIN: 376
Shank diameter: 16 mm
Application type/machine type: Conventional | CNC
Core hole diameter: 17,5 mm
Type: N MAX Control
Coolant supply: External
Shank square: 12 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10483048

EAN no.: 4050293581829

Product Datasheet Datasheet cutting values
