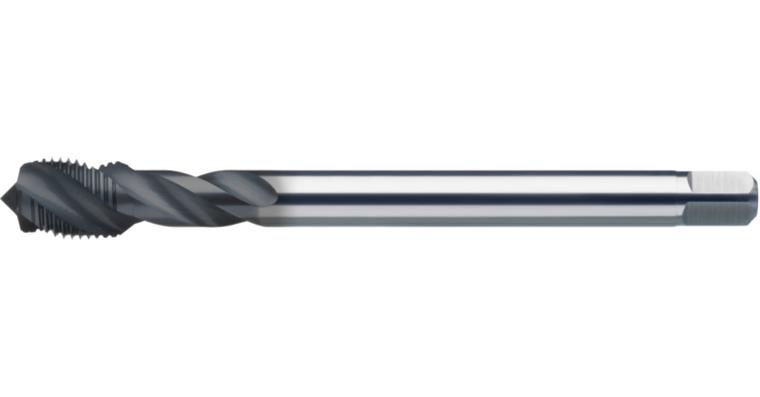

ATORN screw tap HSSE UltraHL C 374 45° MF14 1.5 mm ISO2 S 2.5xD CNC

ATORN screw tap HSSE UltraHL C 374 45° MF14 1.5 mm ISO2 S 2.5xD CNC

ATORN screw tap HSSE UltraHL C 374 45° MF14 1.5 mm ISO2 S 2.5xD CNC
Item no: 1003141 232

Online price:

Available in 4-6 working days.

Application
For producing fine metric threads on CNC machines or conventional machines in blind holes in the steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1000 N/mm².

Execution
With transition-fit shank

Advantage
  • Ideal for long service life requirements and materials that are difficult to machine, such as stainless steel
  • Innovative cutting geometry and ULTRA HL coating guarantee high process reliability even under difficult machining conditions


Brand: ATORN
Thread type: Metric fine thread
Thread type x nominal diameter: MF14
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 100 mm
Cutting material: HSSE
Surface: ULTRA HL
Pitch: 1,5 mm
Twist angle: 45° (right)
DIN: 374
Shank diameter: 11 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 12,5 mm
Type: UNI MAX 45HL Control
Coolant supply: External
Shank square: 9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10482503

EAN no.: 4050293579413

Product Datasheet Datasheet cutting values
