ATORN screw tap HSSE C 371 40° M3 0.5 mm ISO3 S 2.5xD CNC PH

ATORN screw tap HSSE C 371 40° M3 0.5 mm ISO3 S 2.5xD CNC PH

ATORN screw tap HSSE C 371 40° M3 0.5 mm ISO3 S 2.5xD CNC PH
Item no: 1003141 210

Online price:

Available in 4-6 working days.

Application
For creating metric threads with ISO 3 oversize (for subsequent surface treatment or shrinking of the thread in the course of hardening) in the blind hole on CNC or conventional machines for the material group of steel up to a strength of 1300 N/mm².

Execution
with reinforced shank

Advantage
good service life and process reliability thanks to innovative cutting geometry and coating for use in high-strength steel


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M3
Tolerance of screw taps (Tol.): ISO 3 (6G)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 56 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 0,5 mm
Twist angle: 40° (right)
DIN: 371
Shank diameter: 3,5 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 2,5 mm
Type: P MAX 1300
Coolant supply: External
Shank square: 2,7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 2
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10470962

EAN no.: 4050293019858

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN machine tap HSSE-PM HL, 6HX, 0 degrees, form B, IC M24
    412,80 €
  • ATORN screw tap HSSE B 371 0° M2.5 0.45 mm ISO2xD 3xD CNC N
    22,70 €
  • ATORN screw tap HSSE C 371 45° M10 1.5 mm ISO2 S 2.5xD CNC N
  •
    ATORN screw tap HSSE TiCN C 371 40° M5 0.8 mm ISO2 S 2.5xD CNC P
    29,84 €
  • ATORN screw tap HSSE C 374 40° MF30 1.5 mm ISO2 S 2.5xD CNC P
    327,66 €
  • ATORN screw tap HSSE-PM Carbo C 371 40° M4x0.7 ISO2 S 2.5xD CNC N
    39,73 €
  • ATORN screw tap HSSE C DIN 371 15° NPT 1 in ISO2 TH/BH tapered CNC P
  •
    ATORN screw tap HSSE V3 C 40° MF14x1.5 ISO2 2.5xD CNC UNI
    57,67 €
  • Cabinet with door with viewing window, mod. 7, 7035/5012, 9 drawers
  •
    Storage rack 2000x1000x400 add-on bay, 88 bins, 16 shelves
    1.790,70 €

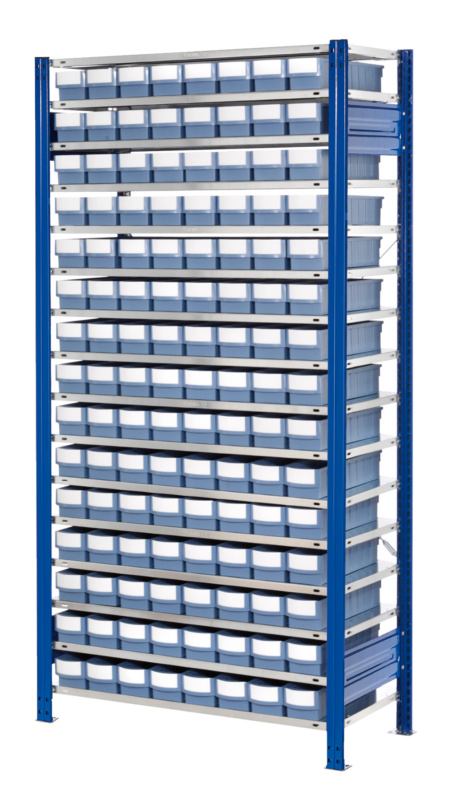

  • Storage rack basic bay 2000x1000x400 mm 14 shelves 72 bins
