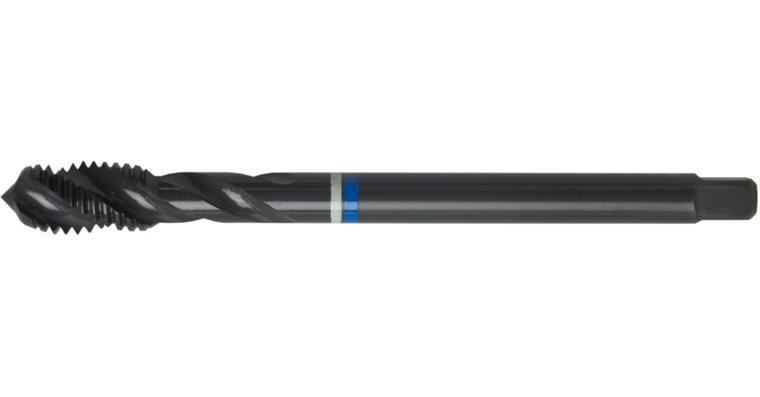

ATORN screw tap HSSE C 376 40° M4 0.7 mm ISO2 S 2.5xD CNC PH

ATORN screw tap HSSE C 376 40° M4 0.7 mm ISO2 S 2.5xD CNC PH

ATORN screw tap HSSE C 376 40° M4 0.7 mm ISO2 S 2.5xD CNC PH
Item no: 1003141 197

Online price:

Available in 4-6 working days.

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the high-strength steel material group up to a strength of 1300 N/mm² in individual part and series production.

Execution
With protruding shank

Advantage
good service life and process reliability thanks to innovative cutting geometry and coating for use in high-strength steel


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M4
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 63 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 0,7 mm
Twist angle: 40° (right)
DIN: 376
Shank diameter: 2,8 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 3,3 mm
Type: P MAX 1300
Coolant supply: External
Shank square: 2,1 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 2
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10470949

EAN no.: 4050293019728

Product Datasheet Datasheet cutting values
