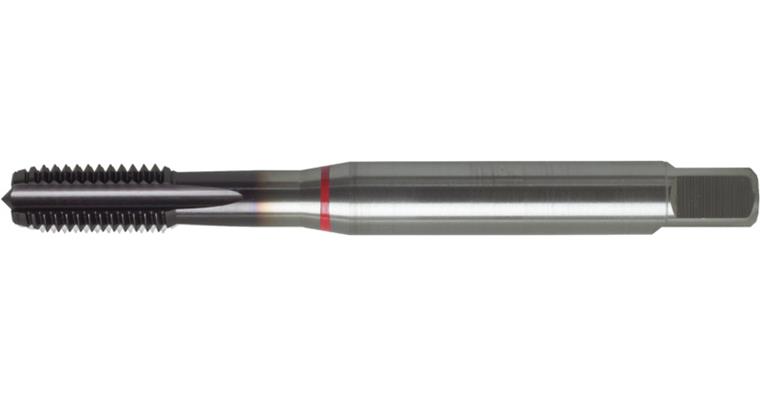

ATORN screw tap HSSE TIAlN C 376 0° M12 1.75 mm ISO2 x D/S 3xD CNC K

ATORN screw tap HSSE TIAlN C 376 0° M12 1.75 mm ISO2 x D/S 3xD CNC K

ATORN screw tap HSSE TIAlN C 376 0° M12 1.75 mm ISO2 x D/S 3xD CNC K
Item no: 1003141 160

Online price:

Available in 4-6 working days.

Application
For producing metric threads on CNC or conventional machines in through holes and blind holes in the non-ferrous metals (short-chipping) and cast iron material groups.

Execution
structural dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = over-long shank (from M12)

Advantage
long service life and high degree of process reliability thanks to innovative cutting geometry for machining cast iron and short-chip non-ferrous metals


Brand: ATORN
Material to be processed: Aluminium | Brass | Bronze | Plastic | Cast metal
Thread type: Metric thread
Thread type x nominal diameter: M12
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Clearance/blind hole ≤ 3xD
Lead angle shape: C
Length: 110 mm
Cutting material: HSSE
Surface: TiAlN
Pitch: 1,75 mm
Twist angle: 0°
DIN: 376
Shank diameter: 9 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 10,2 mm
Type: K MAX Control
Coolant supply: External
Shank square: 7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10479403

EAN no.: 4050293190342

Product Datasheet Datasheet cutting values
