ATORN screw tap HSSE C 376 40° M12 1.75 mm ISO2 S 2.5xD P

ATORN screw tap HSSE C 376 40° M12 1.75 mm ISO2 S 2.5xD P

ATORN screw tap HSSE C 376 40° M12 1.75 mm ISO2 S 2.5xD P
Item no: 1003141 026

Online price:

Available in 4-6 working days.

Application
For producing metric threads on conventional machines in blind holes in the steel, (stainless steel), non-ferrous metals and (cast iron) material groups up to a strength of 1000 N/mm².

Execution
Structural dimensions according to: DIN 371 = reinforced shank (up to M10), DIN 376 = protruding shank (from M12)

Advantage
Long service life and good process reliability due to innovative cutting geometry and universal use for maximum application versatility


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M12
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 110 mm
Cutting material: HSSE
Surface: Uncoated
Pitch: 1,75 mm
Twist angle: 40° (right)
DIN: 376
Shank diameter: 9 mm
Application type/machine type: Conventional
Core hole diameter: 10,2 mm
Type: P MAX 1000 Control
Coolant supply: External
Shank square: 7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 2
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10479488

EAN no.: 4050293189834

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • Through hole screw tap UNF DIN 376 shape B 3xD HSS-E 7/16 inch
  •
    Through hole screw tap SGPO 0° HSS-PM-SG 3xD DIN 374 shape B 6H MF10x1.00
  •
    Hinged door tool cab. 1950x930x500mm, 6 shelves, 4 sm.+2 lrg. drawers RAL7016
  •
    Aux. pipe for oil and petrol suction syringe 200 mm suitable for viscous oil
  •

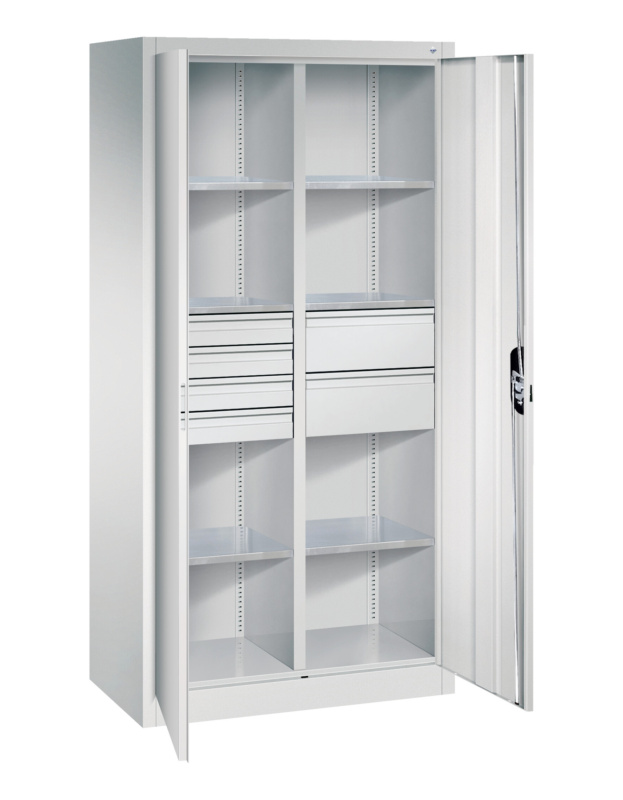

    Hinged door tool cab. 1950x930x500mm, 6 shelves, 4 sm.+2 lrg. drawers RAL7035
  •
