ATORN screw tap HSSE B 5156 0° thread 1/8 in ISO2 D 3xD CNC P

ATORN screw tap HSSE B 5156 0° thread 1/8 in ISO2 D 3xD CNC P

ATORN screw tap HSSE B 5156 0° thread 1/8 in ISO2 D 3xD CNC P
Item no: 1003140 866

Online price:

Available in 4-6 working days.

Application
For manufacturing pipe threads on CNC or conventional machines in through holes in the steel, (stainless steel), NF metal and (cast iron) material groups up to a strength of 1000 N/mm².

Execution
With transition-fit shank

Advantage
Long service life and high process reliability thanks to innovative cutting geometry, and universal use for maximum flexibility in use.


Brand: ATORN
Thread type: Pipe thread
Thread type x nominal diameter in inches: G 1/8 in
Tolerance of screw taps (Tol.): ISO 2 (6H)
Number of thread starts per inch: 28
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 90 mm
Cutting material: HSSE
Surface: Vaporised
Twist angle: 0°
DIN: 5156
Shank diameter: 7 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 8,8 mm
Type: P MAX 1000
Coolant supply: External
Shank square: 5,5 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 2
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10470815

EAN no.: 4050293018424

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • ATORN indexable cutting insert Z1 ASS 5.00-04 MU ACP20G
  •
    ATORN screw tap HSSE B 5156 0° thread 1/4 in ISO2 D 3xD CNC P
  •
    ATORN screw tap HSSE B 5156 0° thread 3/8 in ISO2 D 3xD CNC P
  •
    ATORN screw tap HSSE B 5156 0° thread 1/2 in ISO2 D 3xD CNC P
  •
    ATORN twist drill bit VA HSSE TiAlNplus DIN 1897 diameter 1.5 mm
  •
    ATORN screw tap HSSE vap. C 376 40° M6 1 mm ISO2 S 2.5xD CNC P
  •

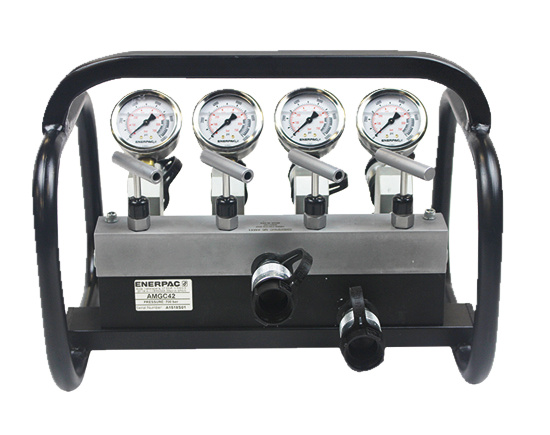

    Four-way distributor unit type AMGC-42 for double-acting cylinders
  •
