ATORN screw tap HSSE B 374 0° MF50 1.5 mm ISO2 D 3xD CNC P

ATORN screw tap HSSE B 374 0° MF50 1.5 mm ISO2 D 3xD CNC P

ATORN screw tap HSSE B 374 0° MF50 1.5 mm ISO2 D 3xD CNC P
Item no: 1003140 858

Online price:

Available in 4-6 working days.

Application
For producing fine metric threads on CNC machines or conventional machines in through holes in the steel, (stainless steel), non-ferrous metals and (cast iron) material groups up to a strength of 1000 N/mm².

Execution
With transition-fit shank

Advantage
Long service life and high process reliability thanks to innovative cutting geometry, and universal use for maximum flexibility in use.


Brand: ATORN
Thread type: Metric fine thread
Thread type x nominal diameter: MF50
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 190 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 1,5 mm
Twist angle: 0°
DIN: 374
Shank diameter: 36 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 48,5 mm
Type: P MAX 1000
Coolant supply: External
Shank square: 29 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 2
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10483092

EAN no.: 4050293582055

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • Through hole screw tap M Synchro DIN 376 shape B 2xD HSS-E-PM-TiCN M16
  •
    ATORN thread mould HSSE-TiN DIN 371 M8 x 1.25 mm ISO 2 3xD
  •
    ATORN screw tap HSSE B 374 0° MF16 1.5 mm ISO2 D 3xD CNC M
  •
    ATORN screw tap HSSE vap. B 374 0° MF12 1 mm ISO2 D 3xD CNC P
  •
    ATORN screw tap HSSE TiN B 376 0° M24 3 mm ISO2 D 3xD CNC P
  •
    ATORN screw tap HSSE B 374 0° MF20 1.5 mm ISO2 D 3xD CNC P
  •
    Sicherheits-Halbschuh Aero S1 Gr.42
  •
    ATORN screw tap HSSE-PM TiAlN C 371 10° MF8 1 mm ISO2 x S 2.0xD CNC
  •
    ATORN screw tap HSSE TiN B 376 0° M16 2 mm ISO2 D 3xD CNC UNI
  •
    ATORN screw tap HSSE-PM Carbo C 371 40° M6 1 mm ISO2 S 2.5xD CNC N
  •
    ATORN screw tap HSSE TiCN B 376 0° M16 2.0 mm ISO2 D 3xD CNC P
  •

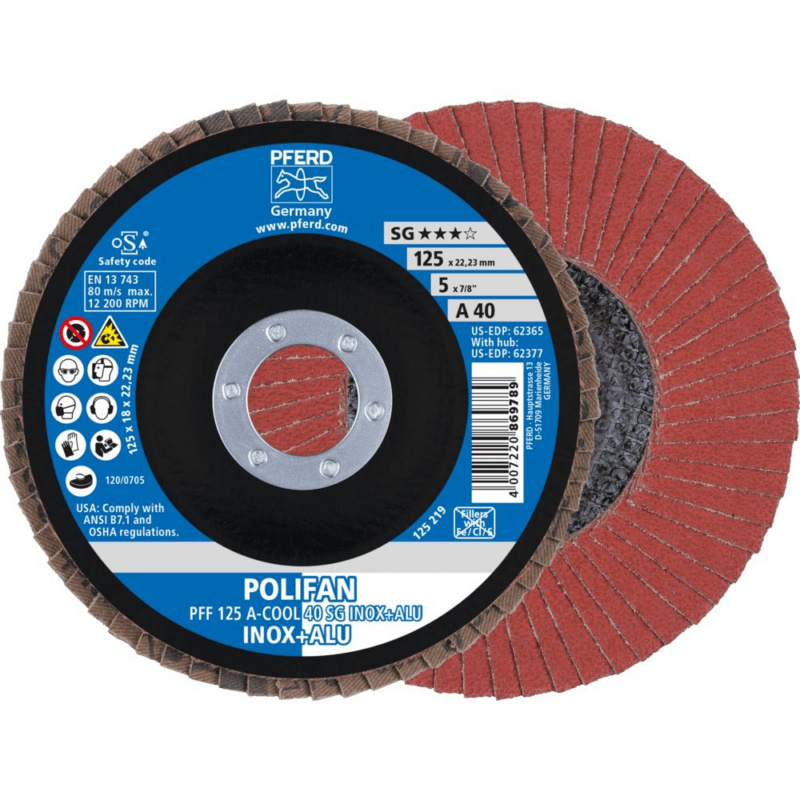

    Lamella flap disc, flat, power line A-COOL SG INOX+ALU dia. 125 mm grain 40
