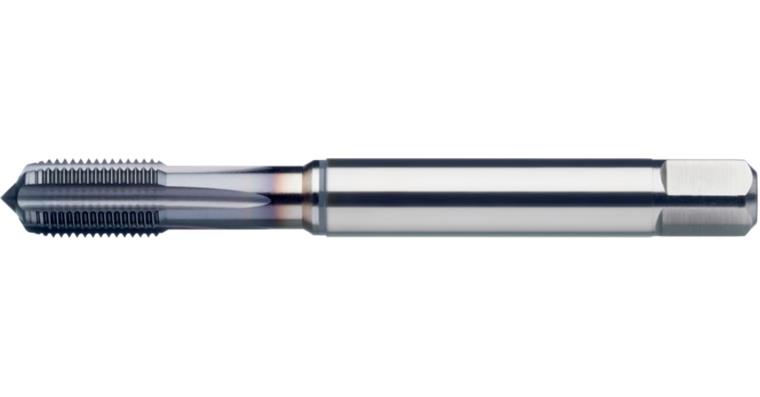

ATORN screw tap HSSE-PM TICN D 371 0° MF8 1 mm ISO2 D/S 1xD CNC H

ATORN screw tap HSSE-PM TICN D 371 0° MF8 1 mm ISO2 D/S 1xD CNC H

ATORN screw tap HSSE-PM TICN D 371 0° MF8 1 mm ISO2 D/S 1xD CNC H
Item no: 1003140 828

Online price:

Available in 4-6 working days.

Application
For producing fine metric threads on CNC machines in through holes and blind holes in the hardened steel material group up to 55 HRC.

Execution
With reinforced shank

Advantage
Long service life and high process reliability thanks to innovative cutting geometry and coating for use on hardened steel


Brand: ATORN | ATORN
Material to be processed: Hard material | Hard material | Hardened steel | Hardened steel
Type: H MAX Control | H MAX Control
Thread type: Metric fine thread | Metric fine thread
Thread type x nominal diameter: MF8 | MF8
Pitch: 1 mm | 1 mm
Hole type: Clearance/blind hole ≤ 1xD | Clearance/blind hole ≤ 1xD
Cutting material: HSSE-PM | HSSE-PM
Surface: TiCN | TiCN
Lead angle shape: D | D
Tolerance of screw taps (Tol.): ISO 2 (6H)
Tolerance of screw taps (Tol.): ISO 2 (6H)
Twist angle: 0° | 0°
Shank diameter: 8 mm | 8 mm
Application type/machine type: CNC | CNC | Conventional | Conventional
Core hole diameter: 7 mm | 7 mm
Coolant supply: External | External
Length: 90 mm | 90 mm
Shank square: 6,2 mm | 6,2 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 1
Cutting speed (hard 65) suitability (ISO H 65HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3
DIN: 371 similar | 371 similar

ATORN-No.: 10482995

EAN no.: 4050293581430

Product Datasheet Datasheet cutting values
