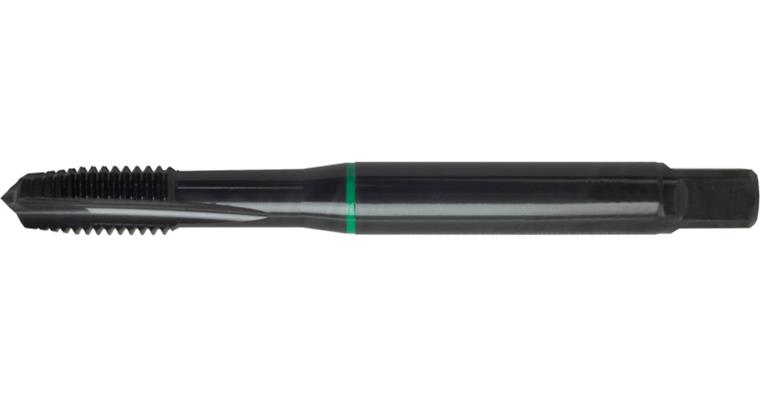

ATORN screw tap HSSE B 371 0° M5 0.8 mm ISO2xD 3xD CNC N

ATORN screw tap HSSE B 371 0° M5 0.8 mm ISO2xD 3xD CNC N

ATORN screw tap HSSE B 371 0° M5 0.8 mm ISO2xD 3xD CNC N
Item no: 1003140 663

Online price:

Available in 4-6 working days.

Application
For producing metric threads on CNC or conventional machines in through holes in the non-ferrous metals material group.

Execution
structural dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = over-long shank (from M12)

Advantage
long service life and high degree of process reliability thanks to innovative cutting geometry in machining non-ferrous metal


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M5
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 70 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 0,8 mm
Twist angle: 0°
DIN: 371
Shank diameter: 6 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 4,2 mm
Type: N MAX Control
Coolant supply: External
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10470751

EAN no.: 4050293017786

Product Datasheet Datasheet cutting values
