ATORN screw tap HSSE UltraHL B 374 0° MF10 1 mm ISO2 D 3xD CNC UNI

ATORN screw tap HSSE UltraHL B 374 0° MF10 1 mm ISO2 D 3xD CNC UNI

ATORN screw tap HSSE UltraHL B 374 0° MF10 1 mm ISO2 D 3xD CNC UNI
Item no: 1003140 523

Online price:

Available in 4-6 working days.

Application
For producing fine metric threads on CNC machines or conventional machines in through holes in the steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1000 N/mm².

Execution
With transition-fit shank

Advantage
  • Ideal for long service life requirements and materials that are difficult to machine, such as stainless steel
  • Innovative cutting geometry and ULTRA HL coating guarantee high process reliability even under difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric fine thread
Thread type x nominal diameter: MF10
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 90 mm
Cutting material: HSSE
Surface: ULTRA HL
Pitch: 1 mm
Twist angle: 0°
DIN: 374
Shank diameter: 7 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 9 mm
Type: UNI MAX 45HL Control
Coolant supply: External
Shank square: 5,5 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10482854

EAN no.: 4050293580167

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE UltraHL B 371 0° M5x0.8 ISO2 D 3xD CNC UNI M
  •

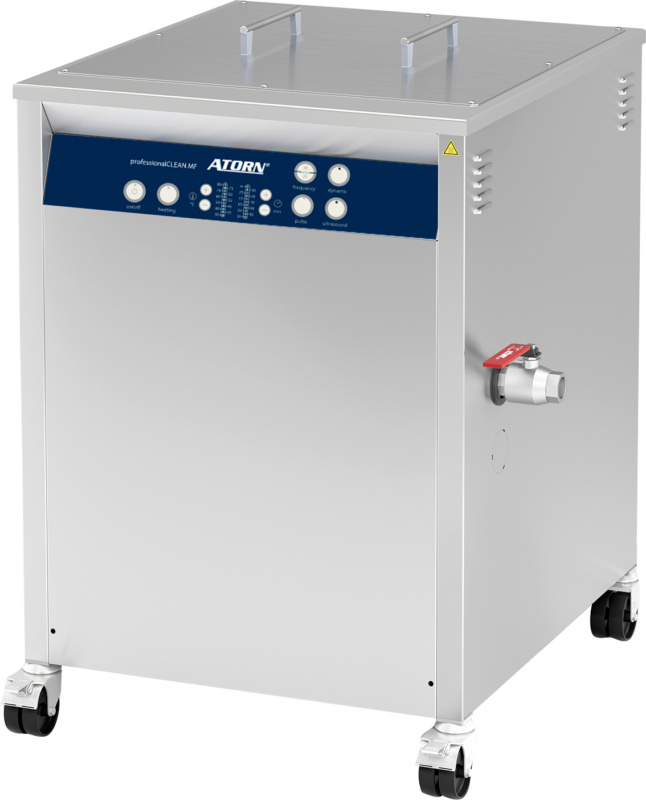

    ATORN ultrasonic cleaning device Pro MF 1400H, 126 L, Multifr. 25/45 kHz
  •
