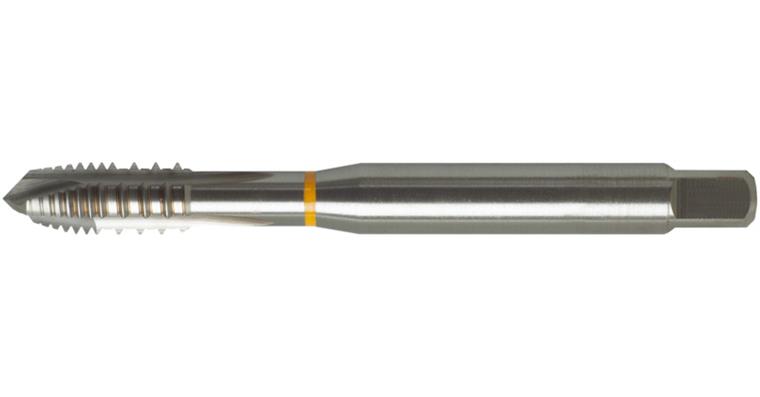

ATORN screw tap HSSE exposed B 371 0° M10 ISO2 D 3xD CNC M

ATORN screw tap HSSE exposed B 371 0° M10 ISO2 D 3xD CNC M

ATORN screw tap HSSE exposed B 371 0° M10 ISO2 D 3xD CNC M
Item no: 1003140 453

Online price:

Available in 4-6 working days.

Application
For producing metric threads on CNC or conventional machines in through holes in the stainless steel material group.

Execution
With exposed teeth and reinforced shank

Advantage
  • Innovative cutting geometry with exposed teeth reduces the torque, improves lubricant distribution and ensures very high process reliability and chip removal
  • Specialised insert with optimised chipping geometry for use in stainless steels with adhesive or lubricating properties


Brand: ATORN
Material to be processed: Stainless steel
Thread type: Metric thread
Thread type x nominal diameter: M10
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 100 mm
Cutting material: HSSE
Surface: Uncoated
Pitch: 1,5 mm
Twist angle: 0°
DIN: 371
Shank diameter: 10 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 8,5 mm
Type: M MAX Control
Coolant supply: External
Shank square: 8 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 2
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10470664

EAN no.: 4050293016932

Product Datasheet Datasheet cutting values
