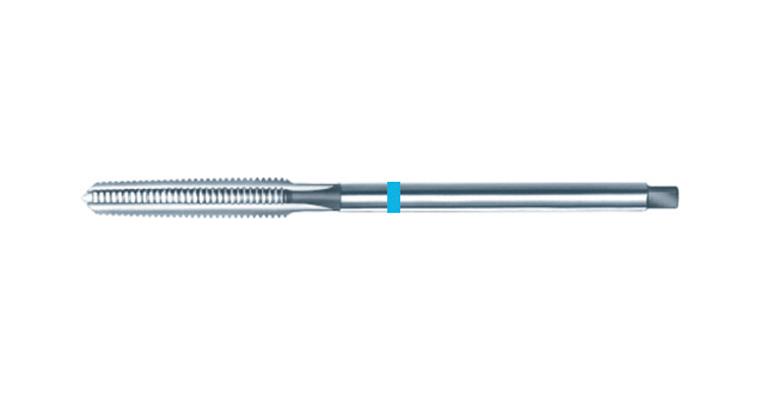

ATORN nut tap 357 0° M8 1.25 mm ISO2xD 3xD CNC P

ATORN nut tap 357 0° M8 1.25 mm ISO2xD 3xD CNC P

ATORN nut tap 357 0° M8 1.25 mm ISO2xD 3xD CNC P
Item no: 1003140 341

Online price:

Available in 4-6 working days.

Application
For machining metric threads (cutting nuts or bridging cavities) in through holes on CNC or conventional machines in the steel, (stainless steel), NF metal and (cast) material groups up to a strength of 1000 N/mm².

Execution
Long design

Advantage
  • Very long thread section can bridge cavities between threads
  • Universal use for maximum flexibility


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M8
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Clearance hole ≤ 3xD
Length: 125 mm
Cutting material: HSSE
Surface: Uncoated
Pitch: 1,25 mm
Twist angle: 0°
DIN: 357
Shank diameter: 6 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 6,8 mm
Type: P MAX 1000
Coolant supply: External
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 2
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10470655

EAN no.: 4050293016840

Product Datasheet Datasheet cutting values
