ATORN hand tap FS HSSE nitrided C 352 0° M12 1.75 mm ISO2 D/S 3xD

ATORN hand tap FS HSSE nitrided C 352 0° M12 1.75 mm ISO2 D/S 3xD

ATORN hand tap FS HSSE nitrided C 352 0° M12 1.75 mm ISO2 D/S 3xD
Item no: 1003140 141

Online price:

Available in 4-6 working days.

Application
For producing metric threads by hand in through holes and blind holes, in steel, (stainless steel), cast iron and (special alloys) material groups up to a strength of 1300 N/mm² in single-part production.

Execution
Third tap (plug) with notch shape C without ring

Advantage
Long service life and process reliability through innovative cutting geometry in machining high-strength steel


Brand: ATORN
Material to be processed: Universal use
Design: Third tap
Type: UNI MAX 1300 N/mm2
Thread type: Metric thread
Thread type x nominal diameter: M12
Lead angle shape: C
Pitch: 1,75 mm
Cutting material: HSSE
Shank diameter: 9 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank square: 7 mm
Surface: Nitrated
Tolerance of screw taps: ISO 2 (6H)
Core hole diameter: 10,2 mm
Length: 75 mm
Cutting speed (steel 1000) suitability (Eignung Stahl 1000 N/mm2): 2
Cutting speed (steel 1300) suitability (Eignung Stahl 1300 N/mm2): 1
Overall stainless steel suitability (Eignung Edelstahl ): 3
fitness not iron total (Eignung NE-Metalle): 2
Cutting speed (cast) suitability (Eignung Guss): 1
fitness Titan/Nickel/Super total (Eignung Sonderlegierung): 2
fitness stainless steel total (Eignung Hartbearbeitung): 3
DIN: 352

ATORN-No.: 10470539

EAN no.: 4050293015683

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN hand tap VS HSSE nitrided A 352 0° M12 1.75 mm ISO2 D/S 3xD
  •

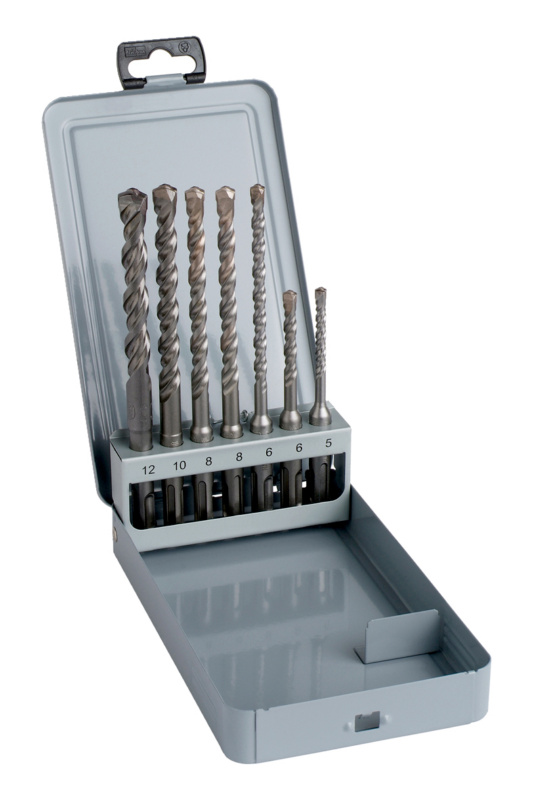

    Tungsten carbide hammer drill bit set SDS-plus 7 pieces in metal box
    53,09 €
  • ATORN SK40 MK3 spacer sleeve (DIN2080) A=65 mm
    68,53 €
  • Schlosserwinkel flach Stahl verzinkt 1500 x 750 mm
    284,31 €
  • ATORN try square 150 x 100 mm in line with DIN 875 precision 2
  •
    Wheel brush Pipeline 125 mm dia., steel wire 0.5 mm, thread M14
    31,51 €
  • ATORN combination wrench, 12 pcs. 10–32 mm DIN 3113 A
    136,28 €
  • KNIPEX circlip pliers J01 130 mm inset tips for internal rings
  •
    KNIPEX circlip pliers J21 165 mm inset tips for internal rings
  •
    Electronics side cutters Super Knips XL 78 61 140 ESD
    22,08 €

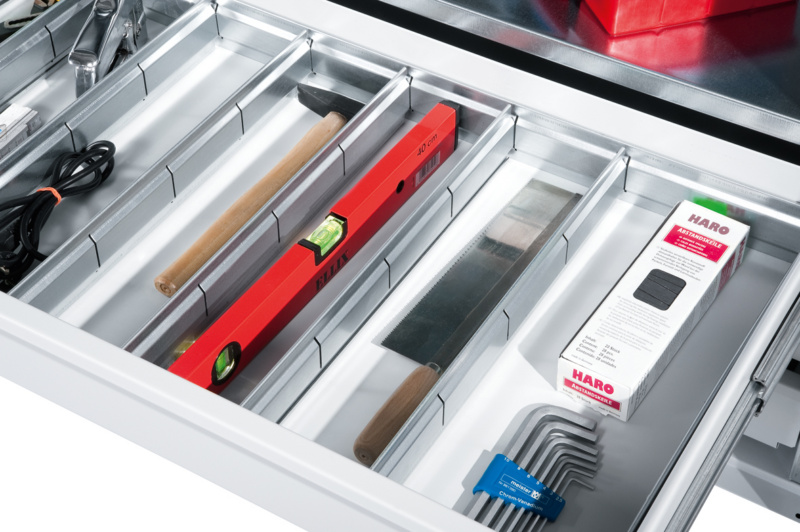

  • Divider made of zinc plated sheet steel for 1200 x 400 mm
