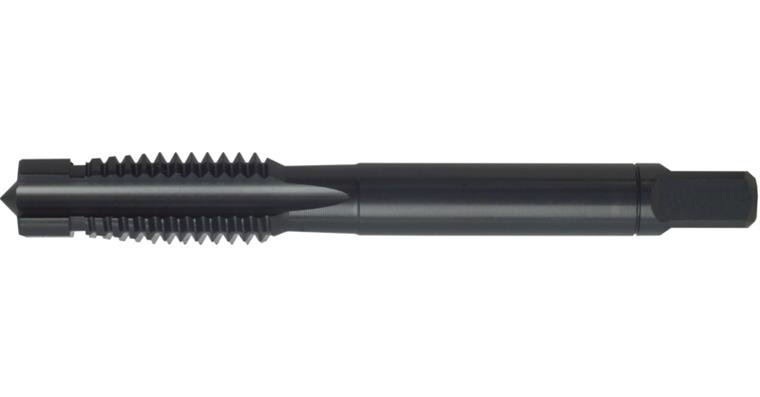

ATORN hand tap VS HSSE nitrided A 352 0° M8 1.25 mm ISO2 D/S 3xD

ATORN hand tap VS HSSE nitrided A 352 0° M8 1.25 mm ISO2 D/S 3xD

ATORN hand tap VS HSSE nitrided A 352 0° M8 1.25 mm ISO2 D/S 3xD
Item no: 1003140 123

Online price:

Available in 4-6 working days.

Application
For producing metric threads by hand in through holes and blind holes, in steel, (stainless steel), cast iron and (special alloys) material groups up to a strength of 1300 N/mm² in single-part production.

Execution
Taper tap with notch shape A with one ring

Advantage
Long service life and process reliability through innovative cutting geometry in machining high-strength steel


Brand: ATORN
Material to be processed: Universal use
Design: Taper tap
Type: UNI MAX 1300 N/mm2
Thread type: Metric thread
Thread type x nominal diameter: M8
Lead angle shape: A
Pitch: 1,25 mm
Cutting material: HSSE
Shank diameter: 6 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank square: 4,9 mm
Surface: Nitrated
Tolerance of screw taps: ISO 2 (6H)
Core hole diameter: 6,8 mm
Length: 56 mm
Cutting speed (steel 1000) suitability (Eignung Stahl 1000 N/mm2): 2
Cutting speed (steel 1300) suitability (Eignung Stahl 1300 N/mm2): 1
Overall stainless steel suitability (Eignung Edelstahl ): 3
fitness not iron total (Eignung NE-Metalle): 2
Cutting speed (cast) suitability (Eignung Guss): 1
fitness Titan/Nickel/Super total (Eignung Sonderlegierung): 2
fitness stainless steel total (Eignung Hartbearbeitung): 3
DIN: 352

ATORN-No.: 10470521

EAN no.: 4050293015508

Product Datasheet
