ATORN hand tap MS HSS D 352 0° M3 0.5 mm ISO2 D/S 3xD

ATORN hand tap MS HSS D 352 0° M3 0.5 mm ISO2 D/S 3xD

ATORN hand tap MS HSS D 352 0° M3 0.5 mm ISO2 D/S 3xD
Item no: 1003140 033

Online price:

Available in 4-6 working days.

Application
For producing metric threads by hand in through holes and blind holes, in steel, non-ferrous metals and (cast iron) material groups up to a strength of 1000 N/mm² in single-part production.

Execution
Second tap with notch shape D with two rings

Advantage
Long service life and process reliability through innovative cutting geometry and universal use for maximum application flexibility


Brand: ATORN
Material to be processed: Universal use
Design: Second tap
Type: UNI MAX 1000 N/mm2
Thread type: Metric thread
Thread type x nominal diameter: M3
Lead angle shape: D
Pitch: 0,5 mm
Cutting material: HSS
Shank diameter: 3,5 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank square: 2,7 mm
Surface: Uncoated
Tolerance of screw taps: ISO 2 (6H)
Core hole diameter: 2,5 mm
Length: 40 mm
Cutting speed (steel 1000) suitability (Eignung Stahl 1000 N/mm2): 1
Cutting speed (steel 1300) suitability (Eignung Stahl 1300 N/mm2): 3
Overall stainless steel suitability (Eignung Edelstahl ): 3
fitness not iron total (Eignung NE-Metalle): 1
Cutting speed (cast) suitability (Eignung Guss): 2
fitness Titan/Nickel/Super total (Eignung Sonderlegierung): 3
fitness stainless steel total (Eignung Hartbearbeitung): 3
DIN: 352

ATORN-No.: 10470478

EAN no.: 4050293015089

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill HSSE-V3 TiAlN 5XD 10.3 x 10 mm x 133 mm
  •
    ATORN twist drill HSSE-V3 TiAlN 5XD 10.5 x 10 mm x 133 mm
  •
    ATORN twist drill HSSE-V3 TiAlN 5XD 12.9 x 12 mm x 151 mm
  •
    ATORN solid carbide twist drill bit type N 5xD 10.2 mm x 133 mm 118°
  •
    ATORN solid carbide twist drill bit type N 5xD 10.5 mm x 133 mm 118°
  •
    Adjustable optical squares accuracy 0.1 mm L x W x H 102 x 30 x 46 mm
  •
    Digital inspection camera micro CA-350 camera dia. 17 mm cable length 90 cm
  •

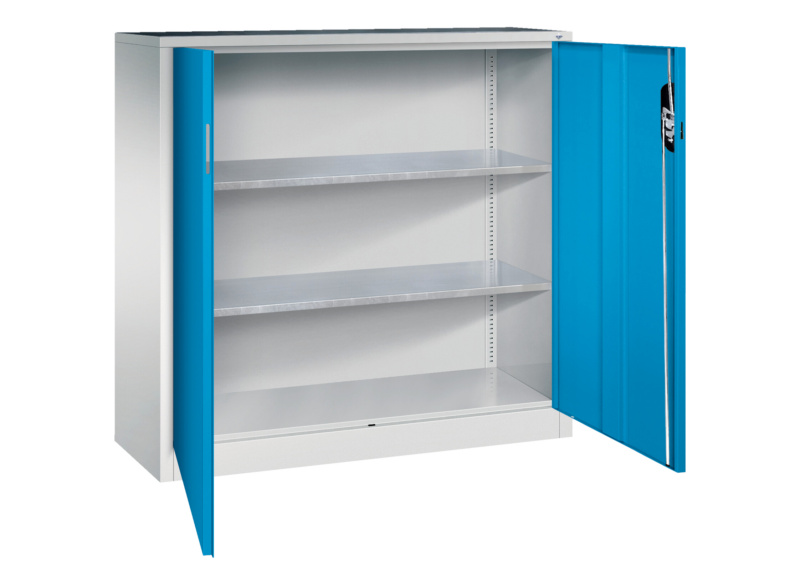

    Hinged door tool cabinet HxWxD 1200x1200x400 mm 2 shelves RAL 5012
  •

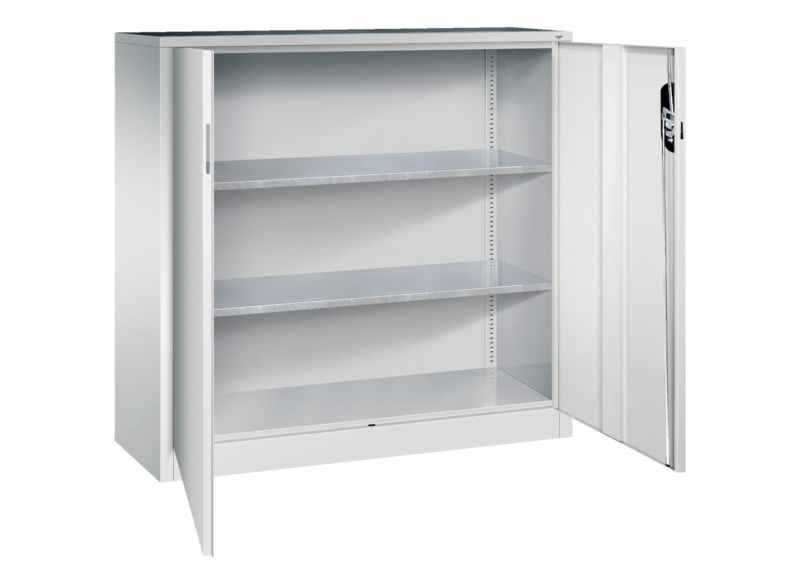

    Hinged door tool cabinet HxWxD 1200x1200x400 mm 2 shelves RAL 7035
  •
