ATORN HPC reamer, SC TiALN T=6 0° 6.21-6.70mm x 100mm x 16mm HA (hard)

ATORN HPC reamer, SC TiALN T=6 0° 6.21-6.70mm x 100mm x 16mm HA (hard)

ATORN HPC reamer, SC TiALN T=6 0° 6.21-6.70mm x 100mm x 16mm HA (hard)
Item no: 1003130 568

Online price:

Available in 6-8 working days.

Application
For cutting fit tolerances in through holes and blind holes on modern CNC machines with steady tool and workpiece clamping up to 63HRC.

Execution
Straight grooved with extremely variable pitch and internal cooling, type A

Advantage
  • innovative cutting geometry ensures excellent dimensional accuracy and process reliability for very high cutting parameters
  • High-quality solid carbide cutting material and coating ensure a very long service life
  • Radial internal cooling ensures optimum chip removal

Notes
Make sure that tools are accurately and tightly clamped (ideally use a hydro-mechanical clamping chuck or precision collet chuck). When ordering, specify the desired fit and diameter (e.g. 8.05 H7) take care! Please refer to dimension table.

Brand: ATORN
Cutting edge diameter: 6,5 mm
Tolerance of fit: Optional
Type: HPC HARD
Suitable for through hole: Yes
Suitable for blind hole: Yes
Form: A
Groove type: Straight
Number of cutting edges: 6 PCS
Surface: TiAlN
Cutting material: SC
Projecting length: 62 mm
Min./max. optional diameter: 6.21-6.70 mm
Length: 100 mm
Cutting edge length: 16 mm
Shank diameter: 8 mm
Coolant supply: Internal
Tool holding device: HA parallel shank

ATORN-No.: 12160315

EAN no.: 4050293396546

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • Indexable milling insert TNGX 160608SR-M:M8340
  •
    ATORN HPC reamer, SC TiALN T=6 0° 7.71-8.20mm x 100mm x 16mm HA (hard)
  •

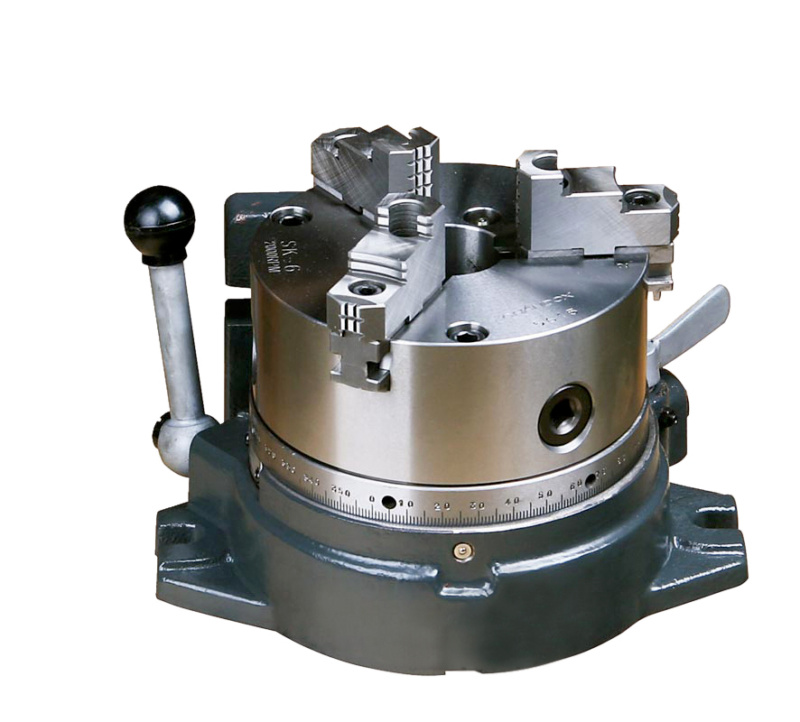

    Horizontal-vertical index unit HRTE 165 with 3-jaw chuck, chuck diameter 165 mm
  •
    ATORN HPC reamer, SC TiALN T=6 0° 7.21-7.70mm x 100mm x 16mm HA (hard)
  •
    ATORN STEP DRILL type N HSS vaporised DIN 338 diameter 9.50 mm
  •

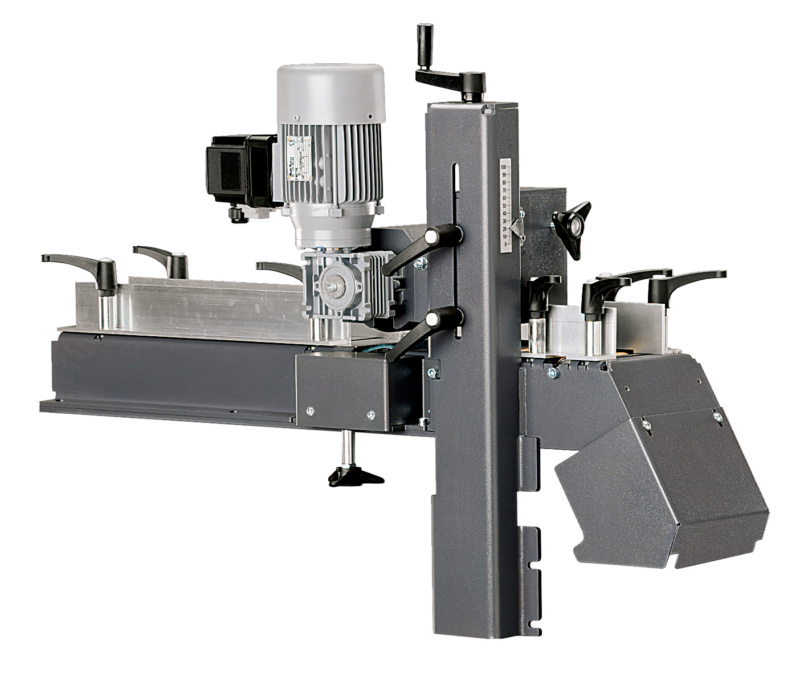

    Surface grind. module GIL for belt sand. machines GRIT GI cat. no. 92373 101-102
  •
