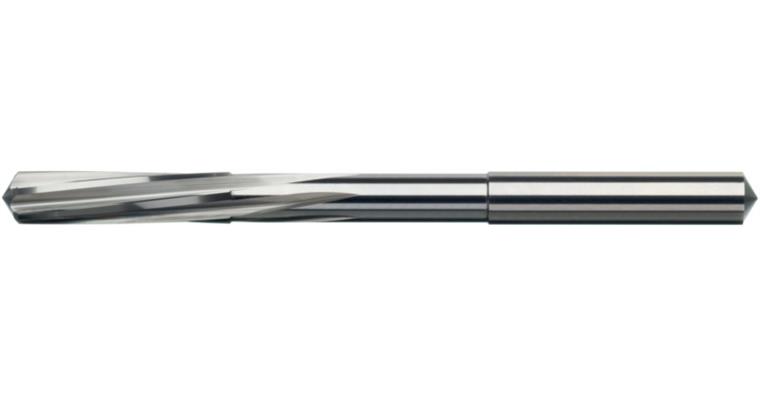

ATORN NC reamer SC T=6 B 7-8° 3.0 mm H7 x 61 mm x 20 mm HA DIN 8093 K10

ATORN NC reamer SC T=6 B 7-8° 3.0 mm H7 x 61 mm x 20 mm HA DIN 8093 K10

ATORN NC reamer SC T=6 B 7-8° 3.0 mm H7 x 61 mm x 20 mm HA DIN 8093 K10
Item no: 1003130 389

Online price:

Available in 4-6 working days.

Application
For producing H7 fit tolerances in through holes on an NC machine in material groups up to 1300 N/mm².

Execution
7-8° left-hand spiral and variable pitch, cemented carbide quality K10

Advantage
good bore hole quality (dimensional tolerance, roundness, surface quality)


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Groove type: Left-hand twist, 7-8°
Surface: Uncoated
Tool holding device: HA parallel shank
Cutting edge diameter: 3 mm
Tolerance of fit: H7
Length: 61 mm
Cutting edge length: 20 mm
Shank diameter: 3 mm
Number of cutting edges: 6 PCS
f steel 1300: 0,12 mm/r
DIN: 8093 similar

ATORN-No.: 11250011

EAN no.: 4050293128987

Product Datasheet Datasheet cutting values
