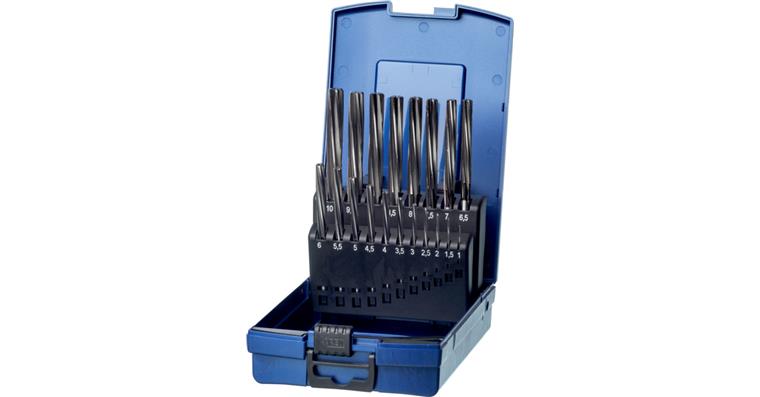

ATORN HSS hand reamer set, H7, B, 7–8°, 1–10 mm, T=0.5

ATORN HSS hand reamer set, H7, B, 7–8°, 1–10 mm, T=0.5

ATORN HSS hand reamer set, H7, B, 7–8°, 1–10 mm, T=0.5
Item no: 1003130 002

Online price:

Available in 5-7 working days.

Application
For cutting H7 fit tolerances manually in through holes or with interrupted cutting conditions up to 1000 N/mm².

Execution
6° left-hand spiral, uneven pitch and long notch shape

Advantage
Good bore hole quality (dimensional tolerance, roundness, surface quality)


Brand: ATORN
Material to be processed: Steel | Stainless steel | Non-ferrous metal | Cast metal | Special alloy
Cutting material: HSS
Tolerance of fit: H7
Groove type: Left-hand twist, 6°
Surface: Uncoated
Composition of set: Diameters 1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.6/7/7.5/8/8.5/9/9.5/10
Number of pieces in assortment/set: 19 PCS
DIN: 206

ATORN-No.: 10040690

EAN no.: 4050293348965

Product Datasheet
