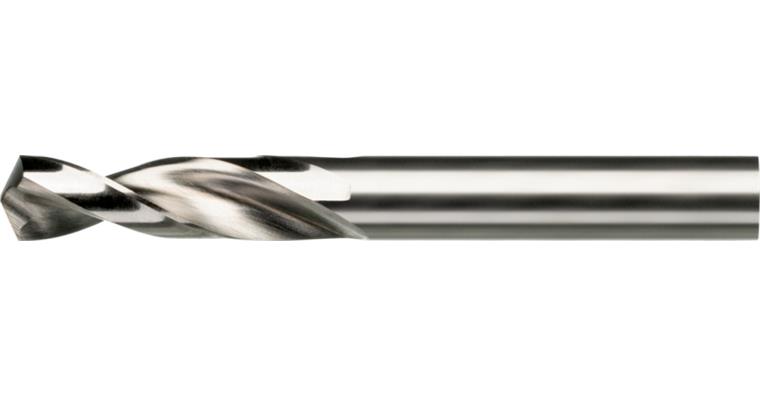

ATORN twist drill TLP HSSE, DIN 1897, 17.5 mm x 123 mm x 62 mm, 130°

ATORN twist drill TLP HSSE, DIN 1897, 17.5 mm x 123 mm x 62 mm, 130°

ATORN twist drill TLP HSSE, DIN 1897, 17.5 mm x 123 mm x 62 mm, 130°
Item no: 1003100 247

Online price:

Available in 4-6 working days.
Replacement article

Application
Geometry with deep-hole profile for application up to a strength of 1300 N/mm².

Execution
Twist drill with deep-hole profile

Advantage
  • Deep-hole profile for optimised chip removal at greater drilling depths without venting
  • effective removal of chips thanks to large chipping spaces

Delivery
Packaging unit: drill Ø 1.0-6.0 mm = 10 pieces (price per piece)


Brand: ATORN
Cutting material: HSSE
Surface: Uncoated
Type: TLP
Tool holding device: HA parallel shank
Cutting edge diameter: 17,5 mm
Angle of the tip: 130 Degree
Chip flute length: 62 mm
Length: 123 mm
f steel 700: 0,21 mm/r
DIN: 1897

ATORN-No.: 10472760

EAN no.: 4050293036497

Product Datasheet Datasheet cutting values
