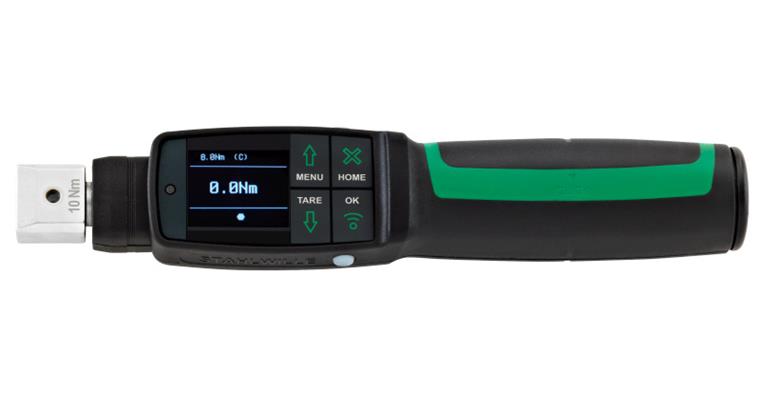

STAHLWILLE - STAHLWILLE Manoskop 714 torque wrench, measuring range 1

Execution

Four measuring modes (torque, angle, torque backed up by angle, angle backed up by torque)
High-resolution colour graphic display with additional side signal lights, freely configurable menu layout
Three function modes: Release, Peak (display operation with peak value) and Track (display operation with current value)
Micro USB 2.0 interface
Data storage (2,500 screwing operations), up to 200 screw joints in up to 25 processes can be programmed
Measurement units: Nm, ft.lb, in.lb/Correct tightening torque is reached automatically after input of a different pitch
Tactile, visual and acoustic release signal, torque and angle of rotation can be viewed at the same time
Automatic notification of the next calibration date according to time and/or loading count
Angle of rotation display resolution 0.1°
Torque display resolution <= 60 Nm: 0.01 Nm > 60 Nm: 0.1 Nm

Advantage

Quick and precise setting via keyboard, automatic key lock to protect against accidental adjustment
Overload protection by means of acoustic and visual warning and forced release (clockwise)
Safe use with ergonomically shaped handle (resistant to oils, greases, fuels, brake fluids and Skydrol)

Delivery
in robust plastic case (size 40 in sheet steel case), with Sensomaster software, USB cable, 4 AAA/LR03 micro batteries, 1.5 V AAA micro NiMh batteries, 1.2 V can be used.

STAHLWILLE Manoskop 714 torque wrench, measuring range 1–10 Nm

STAHLWILLE Manoskop 714 torque wrench, measuring range 1–10 Nm
