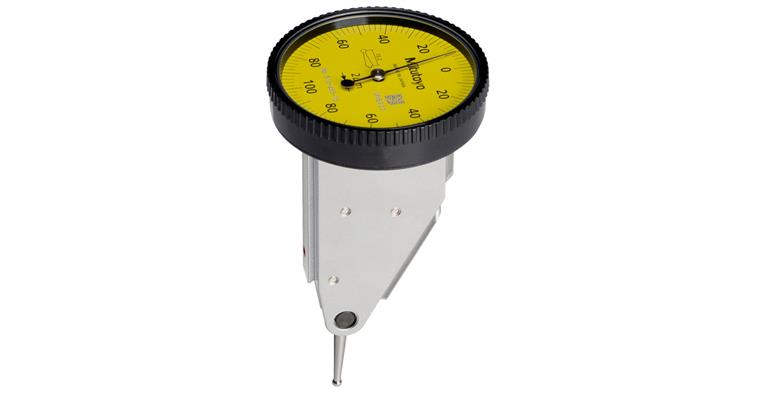

Fühlhebelmessgerät Messbereich 0,2 mm Tasterlänge 18,7 mm Komplettsatz vertikal

Versions

Item no: 1001359 260

Online price:

Catalogue price: You save:

Available in 11-13 working days.

Min. order quantity: 1

Application
For measuring deviations in concentricity, axial run-out, parallelism and flatness. For centring shafts, boreholes and aligning workpieces.

Execution

Glare-free, flat dial face for easy reading
The improved placement of the O-ring seal enables easy rotation of the dial face whilst protecting the scale from the ingress of dust and oil
Multi-layer coating on dial face
Accuracy in accordance with factory standard

Delivery
includes union nut; clamping shank 4 mm and 8 mm; probe tip diameter 1 mm, 2 mm and 3 mm carbide measuring tip; holder for diameters 4 and 8 mm with dovetail guide and holder 100 mm long

Brand: MITUTOYO
Length measuring range: 0,2 mm
Type: Maßstab 0-100-0
Scale value: 0,002 mm
Diameter: 40 mm
Length of measuring sensor from centre of ball: 18,7 mm
Error limit: 0,003 mm
Connection thread: M1.7
Material of measuring ball: Carbide
Calibration Group: L

Manufacturer part no.: 513-455-10T

Product Datasheet
