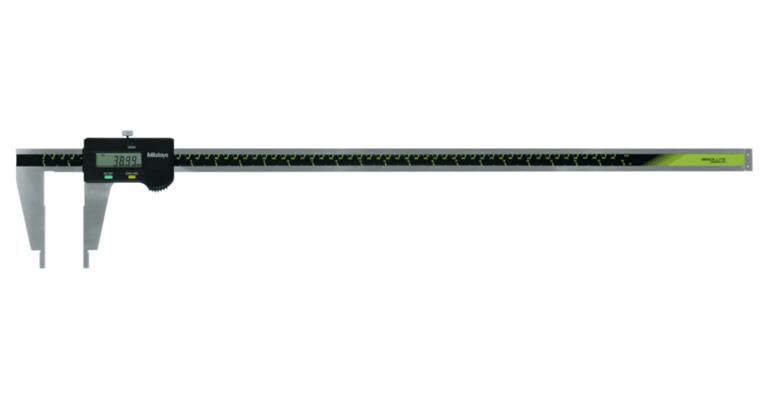

IP67 dig. workshop callipers 0-600 mm

IP67 dig. workshop callipers 0-600 mm

1001352920 IP67 dig. workshop callipers 0-600 mm
Item no: 1001352 920

Online price:

Available in 11-13 working days.

Application
For measuring external and internal dimensions.

Execution
  • Rounded measuring arms allow measurement of internal diameters
  • ABSOLUTE system for reliable measurement
  • Functions: ORIGIN (ABS zero point), low voltage alarm, data output

Delivery
1x box
1x battery

Notes
For connection cables, see art. no. 1035200 607.
For replacement batteries, see art. no. 1039900 101.

Brand: MITUTOYO
Min./max. length measuring range: 0-600 mm
Digit increment: 0,01 mm
Length of jaw: 100 mm
Measuring tips: No
Inner measurement scales: 20 mm
Data transmission type: Wireless | Cable | Bluetooth
IP protection class: 0 - not applicable
Interface: Integrated Wireless | Digimatic | USB 2.0 type A | Bluetooth
Error limit: 0,05 mm
Digit height: 10 mm
Type of locating: With locking screw
Other standard: Company standard
Calibration Group: A

Manufacturer part no.: 550-205-10

Product Datasheet
