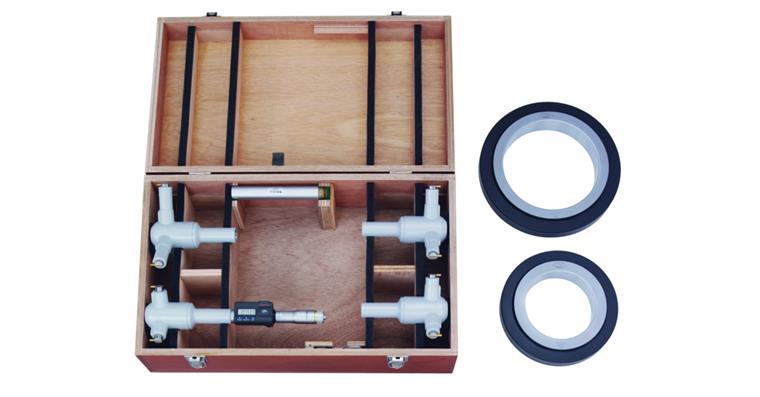

Digital 3-point internal micrometer set 100-200 mm IP65 7 pieces

Versions

Item no: 1001352 299

Online price:

Catalogue price: You save:

Available in 11-13 working days.

Min. order quantity: 1

Application
For measurement of through-bores, blind holes and centring edges.

Execution

Interchangeable measuring heads as set
Titanium coated tungsten carbide (6-12 mm) titanium coated hardened steel (12-200 mm)
Cone: Tungsten carbide
Large LCD display with 7.5 mm digit height makes measured values easy to read

Delivery
Incl. box, adjustment wrench,
1x battery, setting ring,
extension tube, manufacturer’s test certificate (internal micrometer only)

Brand: MITUTOYO
Min./max. length measuring range: 100-200 mm
Composition of set: 100-125 mm | 125-150 mm | 150-175 mm | 175-200 mm | Setting rings dia. 125 mm and 175 mm | 150 mm extension
Digit increment: 0,001 mm
Number of measurement heads: 4 PCS
Number of extensions: 1 PCS
Number of setting rings: 2 PCS
IP protection class: IP 65
Reading Length Metrology: 0,001 mm
Data transmission type: DIGIMATIC | USB
Calibration Group: I | AC
Functions: ABS function | Automatic switch-off | Hold-function (AE lock) | Preset function

Manufacturer part no.: 468-975

Product Datasheet
