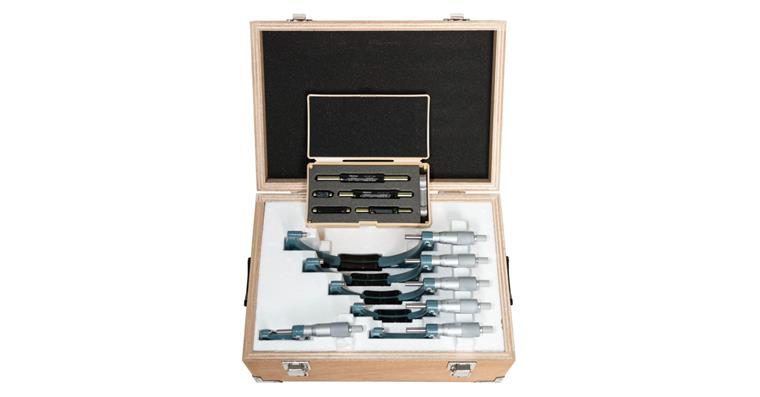

Micrometer set 6 pieces 150-300 mm

Micrometer set 6 pieces 150-300 mm

Micrometer set 6 pieces 150-300 mm
Item no: 1001350 804

Online price:

Available in 11-13 working days.

Application
For measuring shaft diameters, external dimensions etc.

Execution
  • Carbide-tipped and micro-lapped measuring surfaces
  • Semi-gloss chrome-plated thimble and sleeve, dia. 18 mm
  • A ratchet tool ensures reproducible measurement

Delivery
Incl. box, setting gauge (from 25 mm), adjustment wrench, 0-50 mm with factory test certificate


Brand: MITUTOYO
Min./max. length measuring range: 150-300 mm
Digit increment: 0,01 mm
Number of bracket measuring screws: 6 PCS
Composition of set: 150-175 mm | 175-200 mm | 200-225 mm | 225-250 mm | 250-275 mm | 275-300 mm
Measuring spindle increments: 0,5 mm
Measuring surface diameter: 6,35 mm
Min./max. measurement force: 5-10 N
Spindle clamping: Yes
Reading Length Metrology: 0,01 mm
Number of setting dimensions: 6 PCS
Calibration Group: D | E

Manufacturer part no.: 103-915-10
