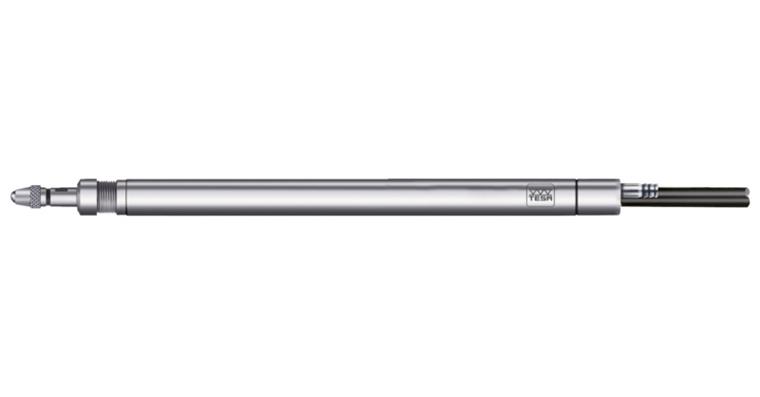

TESA axial measuring probe GT 612-A 1.00 N
Item no: 1001331 841
Online price:
Catalogue price:
You save:
Will be ordered for you
Min. order quantity: 1
Description
ApplicationSuitable for applications in multi-point measuring technology. For recording measured values, the length measuring probes should be pressurised with compressed air and extended forwards.
Execution- Compressed air connection designed to run straight backwards
- Precise, ball-guided measuring pin
- Clamping shaft diameter 8 mm, can be clamped along entire length
- Carbide gauge slide M2.5 with ball diameter 3 mm
- 5-pin plug in line with DIN 45322, cable length 2 m
Advantage- Insensitive to lateral forces and temperature fluctuations
- Excellent electromagnetic shielding
- Version with Viton bellows, especially resistant to coolants and lubricants
DeliveryMeasuring probe, test report with declaration of conformity
Technical data
Brand: TESA
Model: GT 612A
Max. spindle travel: 10,3 mm
Cable output direction: Axial
Material of bellow: 0 - not applicable
Spindle lift: Compressed air
Measuring span of electronic length measuring technology: 10 mm
Measuring range of electronic length measuring technology: +/- 5 mm
Measurement force: 1 N
Max. linearity error (L in mm, measured from electric zero point): 1 µm + (4 x L) µm
Repetition standard deviation acc. to DIN 1319: 0,05 µm
Front end position of spindle: 0 - not applicable
Ball diameter: 3 mm
Cable length: 2 m
Connection thread: M2.5
Installation length: 81 mm
IP protection class: IP 50
Shank diameter: 8 mm
