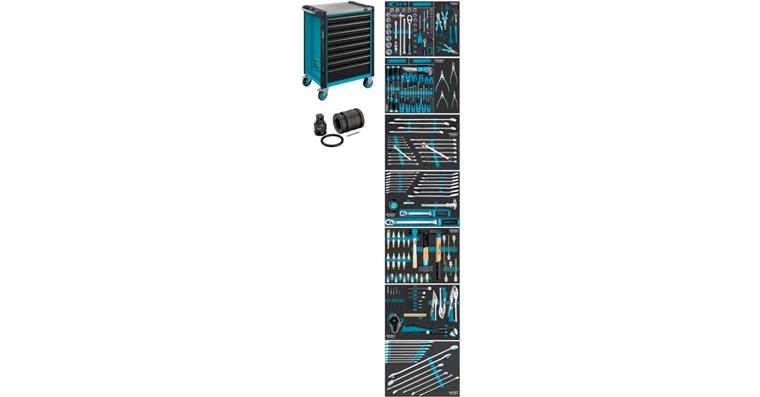

HAZET - Werkstattwagen Typ 179NX-8/206 8 Schubladen

Execution

Fully sealed work surface protects trolley interior against spilled liquids, interfaces integrated into the worktop for accessories such as laptop holders and add-on modules
Completely welded construction of the entire body for rigorous daily use in the workshop
Optimised, yielding edge protection on all four corners - internal damping design for real impact protection
Ergonomically optimised steering handle for improved manoeuvrability
Highly secure locking system with central locking technology for optimum protection of your property, 2-stage locking, central locking, locked by cylinder lock with 2 articulated keys
Self-closing and reciprocal locking of drawers prevents accidental opening, 100 % extension with ball-bearing-mounted telescopic rails, drawer size for organisation system 3/3+
Large, heavy-duty wheels (dia. 125 mm) with precision ball bearings and double ball race in swivel bearing
2 swivel castors with double stop, braked castor prevents trolley rolling away
Braked swivel castor prevents the swivel castors from swivelling, e.g. on inclined surfaces, guard ring prevents the ingress of dirt and threads
Grey, trackless elastic castors run smoothly

Advantage

Significantly enlarged stainless steel storage and work surface
Extremely robust, double-walled design
Ergonomic lock position on side for better operability protects keys and lock against damage
Reciprocal drawer lock minimises the risk of tipping
Easy movement even with high dynamic loads

Notes
New drawer fronts for optimised handling, new dirt-repellent drawer coating for easy cleaning

Brand: HAZET
Number of drawers: 8 PCS
Design: Equipped
Cabinet colour: Blue
Colour of front: Black
Drawer front height: 8 x 80 mm
Load-carrying capacity per drawer: 25 kg
Drawer depth (inner dimension): 398 mm
Drawer width (inner dimension): 522 mm
Pullout type: Full extension
With single pull-out safety brake: Yes
With single-locking drawers: Yes
With SOFT-CLOSE closing function: No
Load-carrying capacity: 1000 kg
Central locking: Yes
Lock type: Padlock
With edge protection: Yes
With sliding handle: Yes
Number of fixed rollers: 2 PCS
Number of steering rollers: 2 PCS
With wheel lock: Yes
Material of wheel: TPE
Wheel diameter: 125 mm
Material of worktop: Stainless steel
Material: Sheet steel
Surface: Powder-coated

Werkstattwagen Typ 179NX-8/206 8 Schubladen

Werkstattwagen Typ 179NX-8/206 8 Schubladen

Description

Technical data

More details
