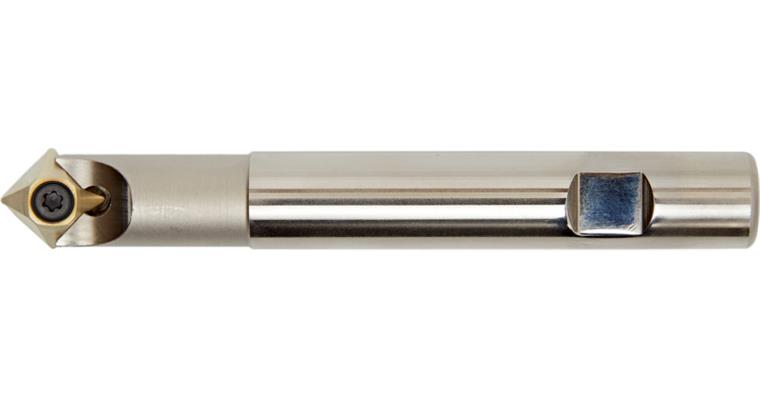

ATORN chamfer and centring cutter 45 degrees diameter 16.0 mm

ATORN chamfer and centring cutter 45 degrees diameter 16.0 mm

ATORN chamfer and centring cutter 45 degrees diameter 16.0 mm
Item no: 1017536 202

Online price:

Available in 4-6 working days.

Application
Centring and NC spot drilling, chamfering, V-groove milling, lathe facing

Execution
  • Straight shank and clamping surface in accordance with DIN 1835 B
  • Shaft tolerance h6
  • clamping screw tightening torque (indexable insert) M4 = 5.2 Nm

Advantage
  • Cost-effective thanks to the four usable cutting edges
  • Improved installation position of the reversible tip increases process reliability


ATORN-No.: 12232715

EAN no.: 4050293636970

Product Datasheet
