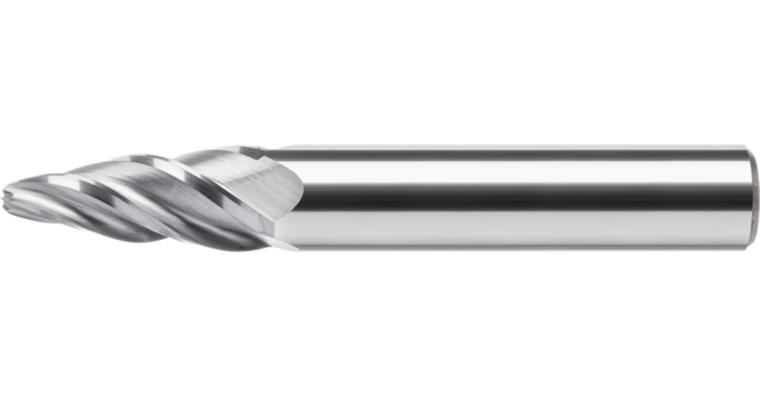

ATORN barrel cutter, length 70 mm, shaft diameter 8 mm, diameter 2–6 mm

ATORN barrel cutter, length 70 mm, shaft diameter 8 mm, diameter 2–6 mm

ATORN barrel cutter, length 70 mm, shaft diameter 8 mm, diameter 2–6 mm
Item no: 1016833 102

Online price:

Available in 6-8 working days.

Application
Barrel milling cutters revolutionise finishing on 5-axis milling machines. Due to the larger radii, you can achieve significantly higher infeeds with improved surfaces.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HA
  • Tangential design
  • Forming tolerance of +/-0.01
  • Uncoated
  • Defined edge rounding

Advantage
  • Suitable for easily accessible edges
  • Reduced machining times thanks to large line skips
  • Highly economical
  • Improved surfaces thanks to large radii


Brand: ATORN
Cutting material: SC
Surface: Uncoated
Type: N
Number of cutting edges (Z): 4 PCS
Twist angle: 15°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 2 mm
Cutting edge length: 24 mm
Length: 70 mm
Shank diameter: 8 mm
fz steel 1000: 0,048 mm

ATORN-No.: 12040844

EAN no.: 4050293635522

Product Datasheet
