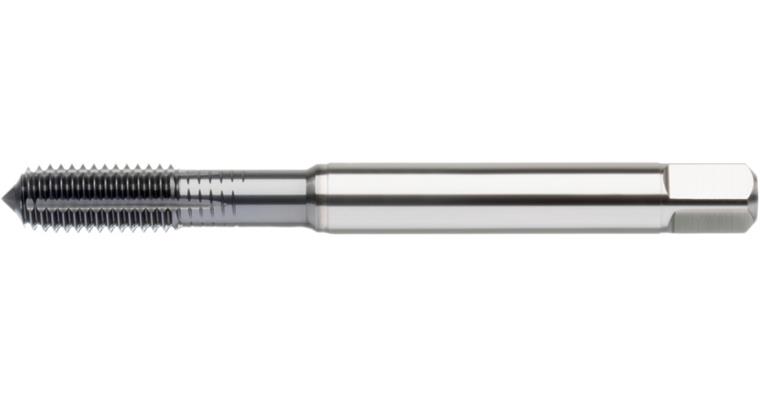

ATORN thread mould HSSE Carbo DIN 371 M8 x 1.25 mm ISO 2 3xD

ATORN thread mould HSSE Carbo DIN 371 M8 x 1.25 mm ISO 2 3xD

ATORN thread mould HSSE Carbo DIN 371 M8 x 1.25 mm ISO 2 3xD
Item no: 1014386 108

Online price:

Available in 6-8 working days.

Application
For producing metric threads in through holes and blind holes on CNC or conventional machines in non-ferrous metals up to a strength of 1300 N/mm².

Advantage
  • Innovative mould geometry ensures very high dimensional accuracy and process reliability
  • Innovative carbo coating for very good gliding properties and emergency operating function if coolant supply is interrupted


Brand: ATORN
Material to be processed: Aluminium
Surface: Carbo coating
Lead angle shape: C
Thread type: Metric thread
Thread type x nominal diameter: M8
Pitch: 1,25 mm
Cutting material: HSSE
Core hole diameter: 7,4 mm
Length: 90 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank diameter: 8 mm
Shank square: 6,2 mm
Coolant supply: External
Tolerance of screw taps: ISO 2X (6HX)
Application type/machine type: CNC | Conventional
Cutting speed (steel 1000) suitability (P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (P 1300 N/mm²): 3
Overall stainless steel suitability (M): 3
fitness not iron total (N): 2
Cutting speed (cast) suitability (K): 3
fitness Titan/Nickel/Super total (S): 3
Cutting speed (hard 65) suitability (H 65HRC): 3
DIN: 371 similar

ATORN-No.: 10483213

EAN no.: 4050293582932

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN thread mould HSSE TiN DIN 374 MF12 x 1.25 mm ISO 2 3xD
    57,88 €
  • ATORN thread mould HSSE TiN DIN 374 MF24 x 1.5 mm ISO 2 3xD
  •
    ATORN screw tap HSSE-PM ULTRA HL B 376 0° M20 2.5 ISO2 3xD CNC
  •
    ATORN screw tap HSSE-PM TiN B 371 50° M4 ISO2 S 2.5xD CNC UNI
  •
    ATORN screw tap HSSE-PM TiN B 371 50° M5 ISO2 S 2.5xD CNC UNI
    24,95 €
  • Blind hole screw tap Hyper Z spiral-fluted 43° HSS-E 3xD DIN 376 shape C 6H M 12
    33,21 €
  • Blind hole screw tap M 1Enorm-VA DIN 371 39° type C 2.5xD HSS-E VA steels M6
    48,64 €
  • ATORN screw tap HSSE-PM ULTRA HL C 371 50° M6 1 ISO2 2.5xD CNC UNI
    30,34 €

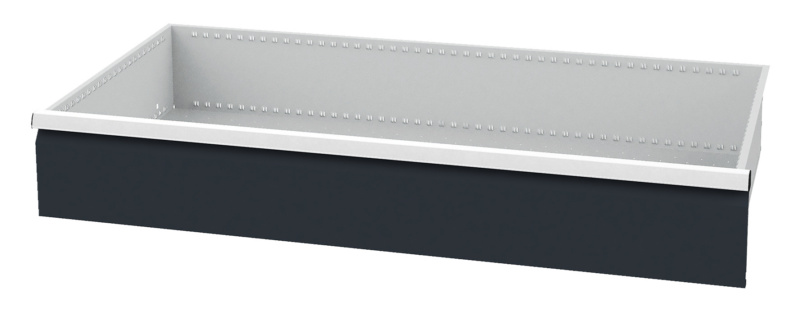

  • Drawer WxD 1200x600mm full-ext. sl. 100 % 180kg front height 100mm RAL7035/5012
